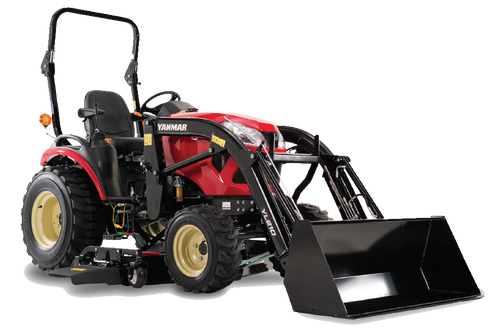

Yanmar SA Series Tractor - 324 TD

Engine
Horsepower 18.1 (13.5 kW) (Hyd)
Bore and Stroke 80 x 84 mm
General
Fuel Capacity 6.0 (22.7 L) (gal)
Transmission (Case) 4.1 gal (15.5 L); Hydrostatic

Perfect for properties in the 3-to-5-acre range, the new 324 gives you higher horsepower and more implement options, so you can get more done. And switching from implement to implement is remarkably quick and easy. This model features the 60" Mower Deck.

Engine
  • Bore x Stroke: 80 x 84 mm
  • Cooling System: 3.0 (2.8 L) (qt) Liquid cooled
  • Cylinders: 3
  • Displacement: 77.2 (1.3 L) (cu. in.)
  • Fuel Capacity: 6.0 (22.7 L) (gal)
  • Ignition: Indirect Injection
  • Lubrication: Full pressure
  • Net Power: 21.7 hp
  • Oil Capacity: 3.6 (3.4 L) (qt)
  • Rating: 3200 RPM
Chassis
  • Brake: Wet disc
  • Front Axle: 3.7 (14.0 L) (gal)
  • Tires: 324XHT TD - Turf
Features
  • Cast Iron Transmission and Front Axle and Dual Hydraulic Pump
  • Electro Hydro Independent PTO with One-Touch On/Off
  • Front-End Loader Capacity + Quick Hitch
  • Performance Link Technology™
  • Redesigned Operator Station with Comfort Seat
  • Smooth, Hydraulic Power Steering
  • True Position Control
General Information
  • Clutch: Hydraulic
  • Gross Power: 23.9 (17.8 kW)
  • Number of: Ranges - 2
  • Warranty: (Accessories) 1 year; (Engine/Drivetrain) 5-year or 2,500-hour limited warranty; (Tractor) 2-year or 2,000-hour limited warranty
Transmission
  • Drive Train: (2WD/4WD Engagement) Selectable; (Mid PTO/RPM) 2057/ 3200; (PTO Type) Independent; (Rear PTO/RPM) 554/ 3200
  • Transmission: (Case) 4.1 gal (15.5 L); Hydrostatic
Power Take-off (pto)
  • HP: 18.1 (13.5 kW) (Hyd)
