| Engine | |
|---|---|
| Horsepower | 18.1 (13.5 kW) (Hyd) |
| Bore and Stroke | 80 x 84 mm |
| General | |
| Fuel Capacity | 6.0 (22.7 L) (gal) |
| Transmission | (Case) 4.1 gal (15.5 L); Hydrostatic |

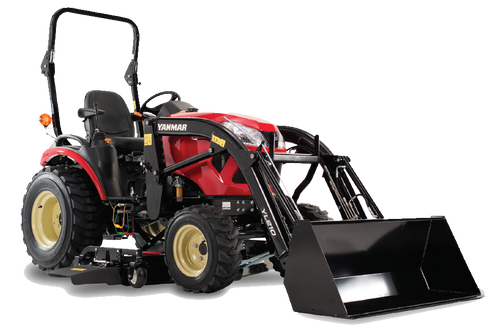

Some of the most beautiful land features rolling hills, steep slopes and challenging terrain. If you work that type of land, the 424 is the right tractor for you. With a larger tire package, the 424 provides greater ground clearance along with enhanced stability. This model features the YL210 Loader and 60" Mower Deck.
Engine
- Bore x Stroke: 80 x 84 mm
- Cooling System: 3.0 (2.8 L) (qt) Liquid cooled
- Cylinders: 3
- Displacement: 77.2 (1.3 L) (cu. in.)
- Fuel Capacity: 6.0 (22.7 L) (gal)
- Ignition: Indirect Injection
- Lubrication: Full pressure
- Net Power: 21.7 hp
- Oil Capacity: 3.6 (3.4 L) (qt)
- Rating: 3200 RPM
Chassis
- Brake: Wet disc
- Front Axle: 3.7 (14.0 L) (gal)
- Tires: 424XHI TLD - Industrial; 424XHT TLD - Turf
Features
- Cast Iron Transmission and Front Axle and Dual Hydraulic Pump
- Electro Hydro Independent PTO with One-Touch On/Off
- Front-End Loader Capacity + Quick Hitch
- Full-Frame Chassis
- Redesigned Operator Station with Comfort Seat
- Smooth, Hydraulic Power Steering
- Two Side-By-Side Hydrostatic Transmission Pedals
General Information
- Clutch: Hydraulic
- Gross Power: 23.9 (17.8 kW)
- Number of: Ranges - 2
- Warranty: (Accessories) 1 year; (Engine/Drivetrain) 5-year or 2,500-hour limited warranty; (Tractor) 2-year or 2,000-hour limited warranty
Transmission
- Drive Train: (2WD/4WD Engagement) Selectable; (Mid PTO/RPM) 2057/ 3200; (PTO Type) Independent; (Rear PTO/RPM) 554/ 3200
- Transmission: (Case) 4.1 gal (15.5 L); Hydrostatic
Power Take-off (pto)
- HP: 18.1 (13.5 kW) (Hyd)
