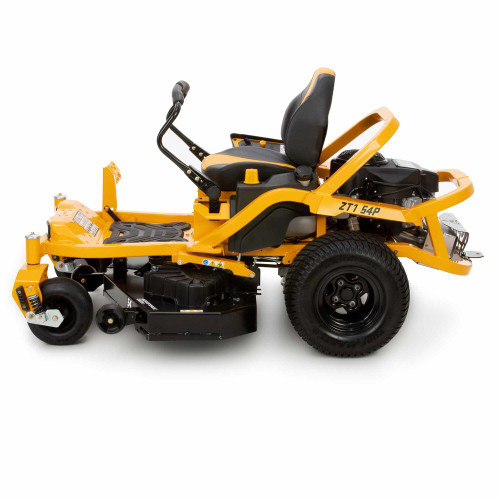

Cub Cadet Ultima Series ZT1 54P" Zero Turn

Call For Pricing


*Price subject to change in accordance to manufacturer requirements*

Write a Review
Engine
Engine Manufacturer Kawasaki
Horse Power 23 hp
Engine Type 2 cylinder
Displacement 726cc
General
Transmission Hydro-Gear EZT 2200
Wheel Size Caster: 11 x 6-5; Drive: 20 x 12-8
Fuel Capacity 3.5 gal.
Deck
Deck Size 54 in.
Discharge Type Side; Optional: Mulch

* Price shown is based on the manufacturer's minimum advertised price (MAP) and is subject to change. MAP excludes optional accessories and installation and applicable taxes.
Engine
  • Engine Brand Kawasaki®
  • Engine Model FR Series
  • Engine Model Number 691V
  • Engine Displacement 726cc
  • Engine Output 23HP
  • Starter Type Electric
  • Fuel Tank Capacity 3.5 gal. US (13.25 L)
  • Cylinders Twin
  • Engine Start Ignition Key
  • Engine Oil Capacity 2.1 qt US ( 2 L)
  • Lubrication Fully pressurized
  • Charging System 15 amp regulated
  • Fuel Gauge No
  • Governor Mechanical
  • Choke Separate Choke
  • Air Filter Dual element
  • Oil Filter Yes
  • Fuel Delivery Carburetor
Battery
  • Battery 210 CCA
  • Battery Type AGM (Absorbent Glass Mat)
  • Battery Voltage 12V
Drive System
  • Transmission Hydro-Gear EZT 2200
  • Forward Speed 7 MPH / 11.3 km/h
  • Reverse Speed 3.5 MPH / 5.6 km/h
  • Drive System Hydrostatic
Cutting Deck
  • Deck Cutting Width 54 in
  • Deck Wash No
  • Deck Material 11-gauge steel
  • Deck Engagement (PTO) Electric
  • Deck Construction Fabricated
  • Blade(s) Three
  • Deck Lift Foot pedal with Dial Adjust
  • Cutting Height Range 1'' - 4.5''
  • Anti-Scalping Three gauge wheels
  • Deck Positions 15
Warranty
  • Warranty 3-year unlimited hours
  • Frame Warranty Lifetime Limited
  • Deck Shell Warranty Lifetime limited
  • Commercial Warranty No
Chassis
  • Frame 2'' x 2'' tubular steel
  • Turning Radius
  • ROPS No
  • Rear Tow Hitch Yes
  • Corrosion Protection Yes
Controls
  • Cruise Control No
  • Brakes Disc
  • Steering Control Lap Bars
Comfort
  • Seat Type 20" high back
  • Armrests No
  • Seat Adjustment Knob
Wheels
  • Rear Tires 20''x 12''- 8''
  • Front Tires 11"x 6"-5"
  • Tire Tread Turf Master / Multi Trac
Additional Specifications
  • Hour Meter No
  • Mulch Kit Available separately
  • Headlight(s) Dual-LED
  • Cup Holder Yes
  • Operator Presence System Yes
  • Parking Brake Lap Bar Integrated
  • Model Number 17AIEACMA10
Specifications
  • Series Ultima Series™ ZT
