DESCRIPTION

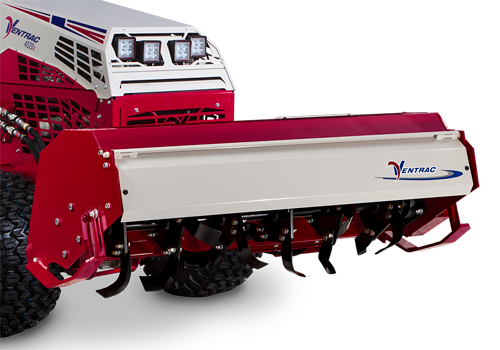

The KL480 Tiller is designed for easy preparation of gardens and yards. This power-driven front-end attachment allows the operator to easily monitor the Tiller's performance. Designed with the Ventrac Mount System, the Tiller can be attached in a minute or less and comes with a stand for storing the Tiller when not in use.
A number 80 chain in an enclosed final drive is lubricated for heavy-duty performance. Skid shoe adjustments facilitate cutting depth. Twenty-four high carbon steel tines are sequentially spaced to provide smooth and efficient tillage.
| Specifications | 39.55220 |
|---|---|
| Info | |
| Picture |  |
| Sales Model | KL480 |
| Full Description | KL, KL480 Tiller |
| Product Type | Attachment |
| Category | |
| Front Mount | Ventrac Mount System |
| 4000 Series Mount | |
| Dimensions | |
| Working Width | 48 in |
| Length | 41 in |
| Overall Height | 22 in |
| Overall Width | 53 in |
| Weight | 356 lbs |
| General | |
| Max Till Depth | 6 in |
| Ground Clearance | 10 in Approx |
